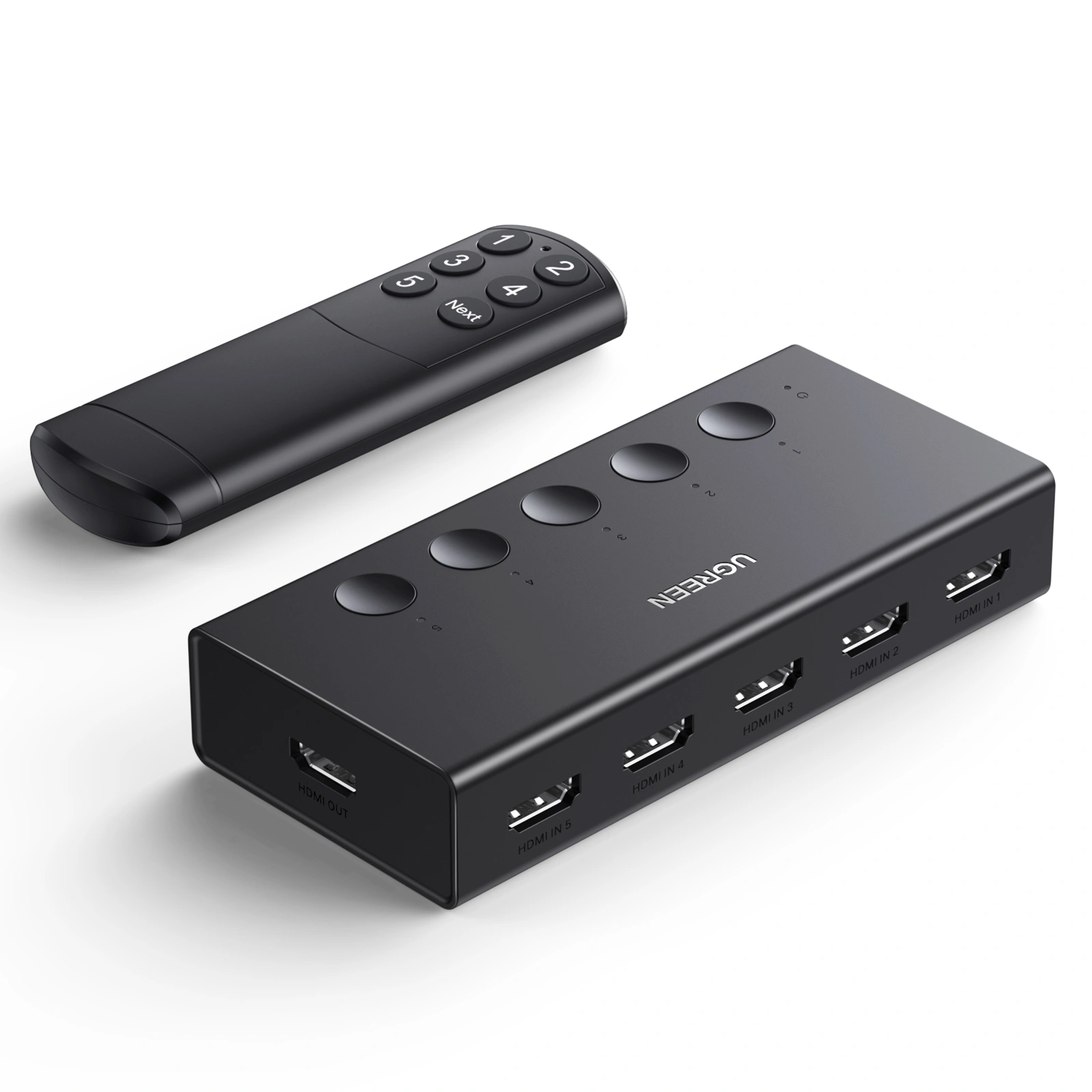

The UGREEN CM568 HDMI Switch is a high-performance 5-in-1-out HDMI switcher designed for seamless switching between multiple HDMI devices. Supporting HDMI 2.0, 4K@60Hz resolution, HDR, and HDCP 2.2, this switch ensures crystal-clear visuals and immersive audio. With infrared remote control and automatic switching, it offers convenience and efficiency for home theaters, gaming setups, and professional AV environments.
Key Features
- 5 HDMI Inputs, 1 HDMI Output
- Connect up to five devices (gaming consoles, Blu-ray players, streaming devices, etc.).
- Eliminates the need for constantly swapping cables.
- 4K Ultra HD @ 60Hz & HDR Support
- Delivers ultra-clear, vibrant visuals with 4K (3840×2160) resolution at 60Hz.
- Fully compatible with 1080P@60Hz and 3D video formats.
- HDMI 2.0, HDCP 2.2, and EDID Support
- Ensures compatibility with the latest HDMI devices and protects digital content.
- Advanced Audio Support
- Compatible with DTS, DSD, Dolby AC3, and 5.1/7.1 surround sound.
- Supports audio sampling rates up to 192KHz at 24-bit depth for a high-quality experience.
- Reliable Long-Distance Transmission
- Supports 4K@60Hz within 3M using 30 AWG HDMI cables (both input & output).
- Supports 4K@30Hz within 15M using 26 AWG HDMI cables.
- Supports 1080P@60Hz within 20M using 24 AWG HDMI cables.

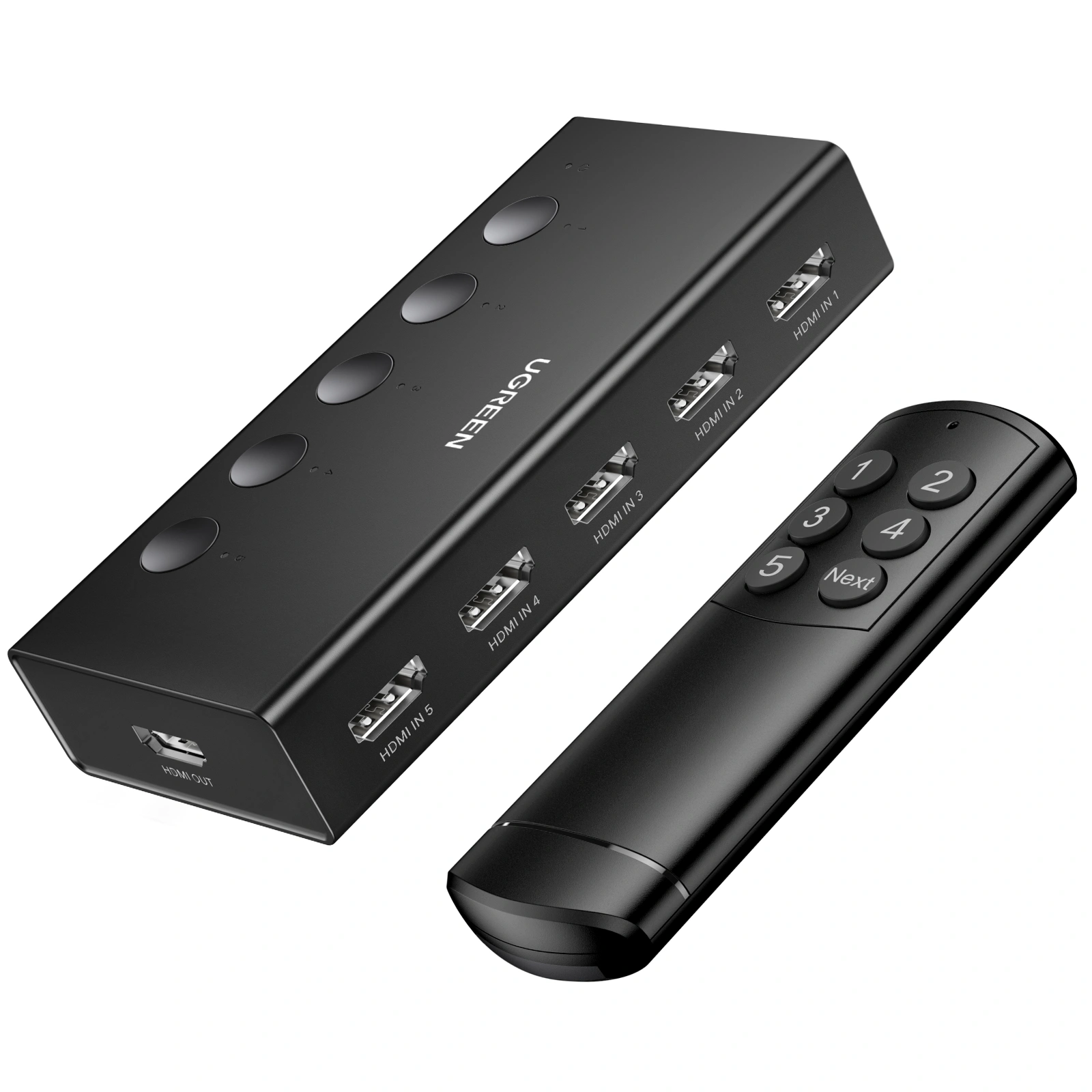

- Infrared Remote Control for Easy Switching
- Switch between HDMI sources effortlessly using the included IR remote.
- AA alkaline battery required (not included).
- Plug & Play with USB-C Power Supply
- Power input: USB-C 5V/1AÂ for stable operation.
- Comes with a 1M USB-A to USB-C cable for power.
- Compact & Durable Design
- ABS casing provides heat resistance and durability.
- Lightweight and compact, perfect for entertainment centers.
